================================ 1. Device for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter 2. KdsSetting - PosMachineOrServer, Kds, Ads 2.1. "KdsSetting-Kds"(KitchenDisplayScreen) 2.2. "KdsSetting-Ads"(AttentionDisplayScreen) 2.3. "KdsSetting-PosMachine" 2.4. "KdsSetting-Server" ================================
1. Device for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter
-------------------------------------------------------------------------------------------------------------------------------------------------
CDevice for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter
-------------------------------------------------------------------------------------------------------------------------------------------------
1.
OrderType : TableSales & QuickService
-------------------------------------------------------------------------------------------------------------------------
1.1.
TableSales
-----------------------------------------------------------------------------------------------------------
"TableSales" Devices
--------------------------------------------
Device in "Kitchen" is for "JobList" :
KitchenPrinter
"KDS"(KitchenDisplayScreen)
----------------------------
Device in "KitchenWindow" is for "CheckList" :
KitchenWindowPrinter
"ADS"(AttentionDisplayScreen) beside the "KitchenWindow"
----------------------------
Device in "Reception" is for "Receipt" or "Invoice".
ReceptionPrinter
Pos Machine
----------------------------
Device in somewhere
Server
"Server" contains the "Database"
-------------------------------------------------------------------------------------------------------------------------
1.2.
QuickService
-----------------------------------------------------------------------------------------------------------
1.2.1.
"QuickService" Devices
--------------------------------------------
Device in "Kitchen" is for "JobList" :
KitchenPrinter
"KDS"(KitchenDisplayScreen)
----------------------------
Device in "KitchenWindow" is for "CheckList" :
KitchenWindowPrinter
"ADS"(AttentionDisplayScreen) beside the "KitchenWindow"
----------------------------
Device in "Reception" is for "Receipt" or "Invoice" or "ServiceNumber"
ReceptionPrinter
Pos Machine
----------------------------
Device in somewhere
Server
"Server" contains the "Database"
-------------------------------------------------------------------------------------------------------------------------------------------------
2. KdsSetting - PosMachineOrServer, Kds, Ads
2.1. "KdsSetting-Kds"(KitchenDisplayScreen)
-------------------------------------------------------------------------------------------------------------------------------------------------
"KdsSetting-Kds"(KitchenDisplayScreen)
-------------------------------------------------------------------------------------------------------------------------------------------------
1.
ServerConfig.exe
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Set up the "IPAdress" for your "Database" on "ServerConfig.exe"
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
2.
Test Printer
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
3.
Equipment --> Machine Id
----------------------------------------------
In my case, my "MachineId" is "K001".
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
4.
KitchenScreen
----------------------------------------------
In "KDS", We should enable the following.
----------------------------
"Kitchen Screen Activated" and select "KDS"(KitchenDisplayScreen) and enable "KDS done only" to activate "KDS"
When we enable "KDS done only", the "Item" status can be only "Cooking, Ready".
-----------
"Kitchen Screen Activated" and select "ADS"(AttentionDisplayScreen) and enable "ADS Serve only" to activate "ADS"
When we enable "ADS Serve only", the "Item" status can be only "Ready, Delivered".
----------------------------
"FIFO Mode" means "First In, First Out".
----------------------------
The "Status" can be "Cooking, Ready, Delivered" by sequence,
and it is not reversible.(Status不可逆轉)
"Enable to reset status" means the status can be reverse from "Delivered" back to "Cooking"
just in case if human mistakes. (E.g. Press wrong button)
----------------------------
"OrderType" can be "TableSale" and "QuickService".
"Sort by Order Type" means the "order" on "KDS" will be sorted by "OrderType"
----------------------------
"Play Sound"
----------------------------
"Done with main item"
When you click the "MainItem" on "KDS",
the status of "MainItem" will become done.
When the "MainItem" is done, all its "InstructionItem" will also be done.
----------------------------
"Print Checklist When Done"
When the "MainItem" or "InstructionItem" is done,
print the "CheckList" for that individual "Item"
----------------------------
"Print After All Done"
When you click "Done" button,
the status for all "Items" of the "Order" will become done.
It will also print the "CheckList" for all "Items" of the "Order".
----------------------------
"Move bottom when done"
When you click the "MainItem" on "KDS",
the status of "MainItem" will become done.
That "MainItem" will be moved to then end of the "Order" on "KDS"
----------------------------

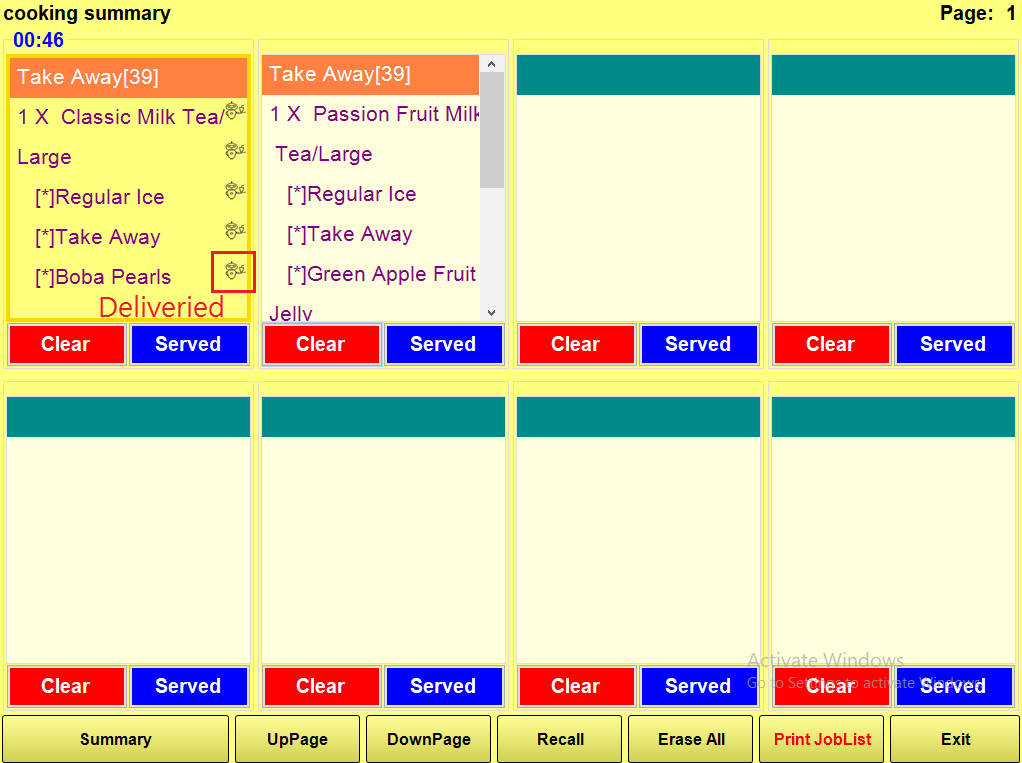

"Clear All Screen When Clear"
I assume that you have "ADS" and "KDS,
After all "Items" has been delivered,
then the "waitress" or "waiter" should click "clear" on "ADS"(AttentionDisplayScreen).
It would "clear" all "Items" for that "order" on both "ADS"(AttentionDisplayScreen) and "KDS"(KitchenDisplayScreen).
----------------------------
"List Mode" and "This device only"
I assume that your have a big "Kitchen" that contains many "KitchenAreas"
E.g.
"KitchenAreas01" is for "Drink" and it has "KDS01"
"KitchenAreas02" is for "Food" and it has "KDS02"
-----------
If you enable "List Mode" and disable "This device only",
it allows your "KDS" displays "JobList" in "List Mode" for both "KDS01" and "KDS02"
Disable "This device only" will display all "KDS" and "ADS" in the same "LAN"(LocalAreaNetwork)
-----------
If you enable "List Mode" and enable "This device only",
it allows your "KDS" displays "JobList" in "List Mode" only for "KDS01" or "KDS02"
I don't recommend this setting.
-----------

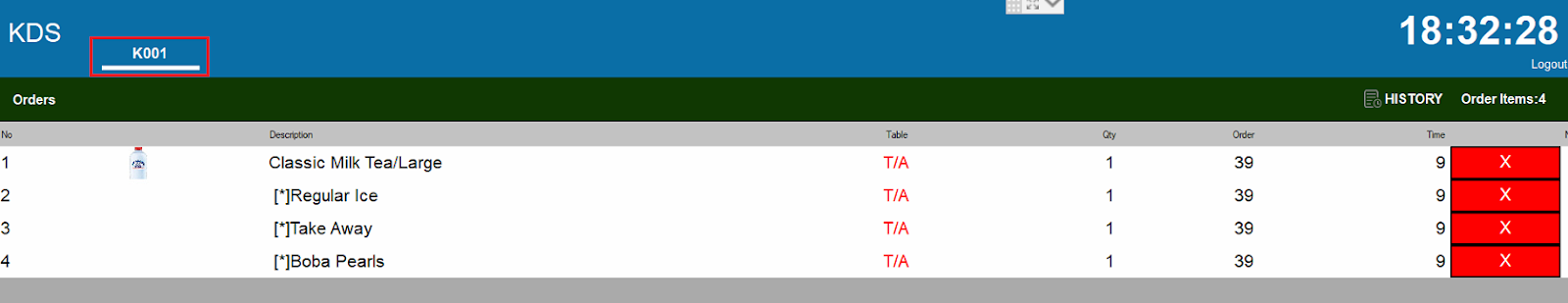

If you disable "List Mode",
it allows your "KDS" displays "JobList" in "Normal Mode" only for "KDS01" or "KDS02"
"Normal Mode" can only display for one device.
----------------------------------------------
----------------------------
disable "List Mode".
-----------
----------------------------
enable "List Mode" and enable "This device only"
I don't recommend this setting.
-----------
----------------------------

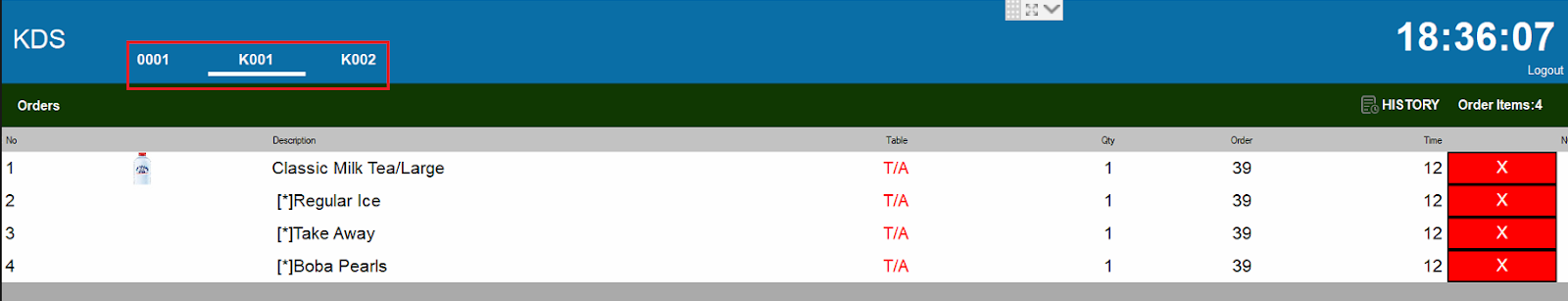

enable "List Mode" and disable "This device only"
Disable "This device only" will display all "KDS" and "ADS" in the same "LAN"(LocalAreaNetwork)
-----------
------------------------------------------------------------------------------------------------------------------------------------
5.

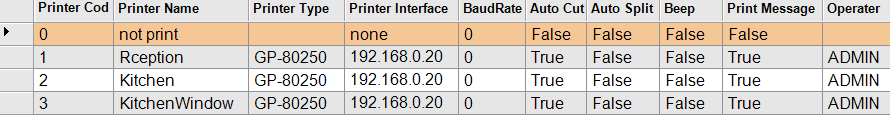

Print Setting
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
6.

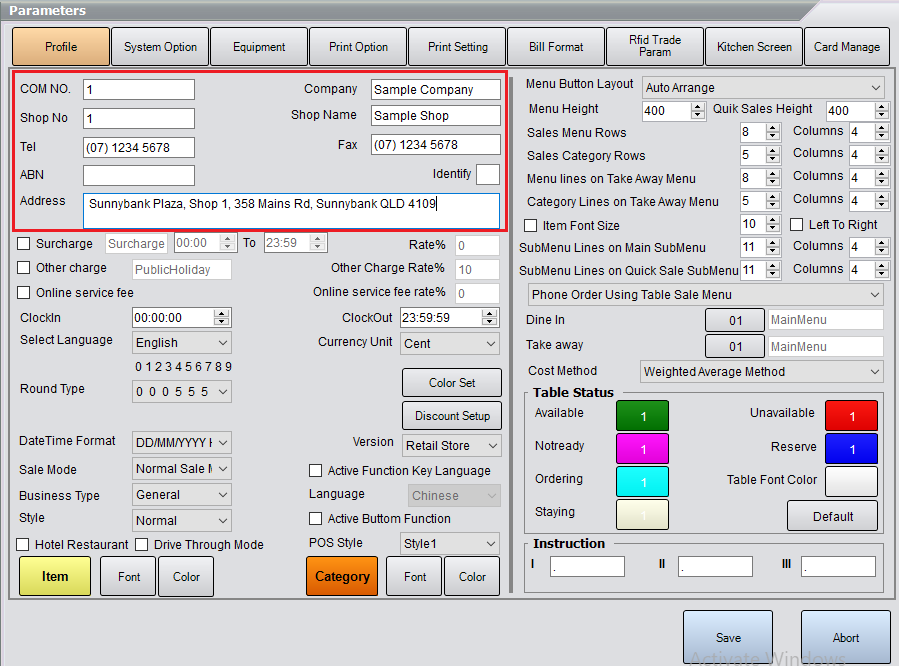

Profile
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
7.
Print Option
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Scenario01
Send Void Item to Kitchen
----------------------------
Disable
Void Item Not Send to Kitchen
Enable
Print JobList When Void AllItem
----------------------------
----------------------------------------------
Scenario02
Not Send Void Item to Kitchen
----------------------------
Enable
Void Item Not Send to Kitchen
Disable
Print JobList When Void AllItem
----------------------------
------------------------------------------------------------------------------------------------------------------------------------
8.

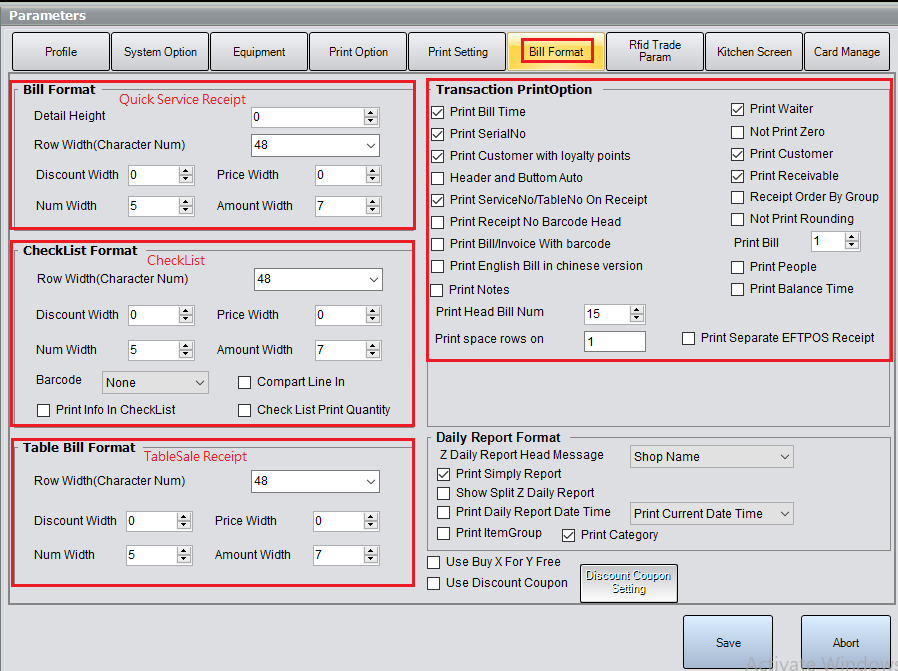

Bill Format
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
2.2. "KdsSetting-Ads"(AttentionDisplayScreen)
-------------------------------------------------------------------------------------------------------------------------------------------------
"KdsSetting-Ads"(AttentionDisplayScreen)
-------------------------------------------------------------------------------------------------------------------------------------------------
1.
ServerConfig.exe
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Set up the "IPAdress" for your "Database" on "ServerConfig.exe"
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
2.
Test Printer
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
3.
Equipment --> Machine Id
----------------------------------------------
In my case, my "MachineId" is "K002".
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
4.
KitchenScreen
----------------------------------------------

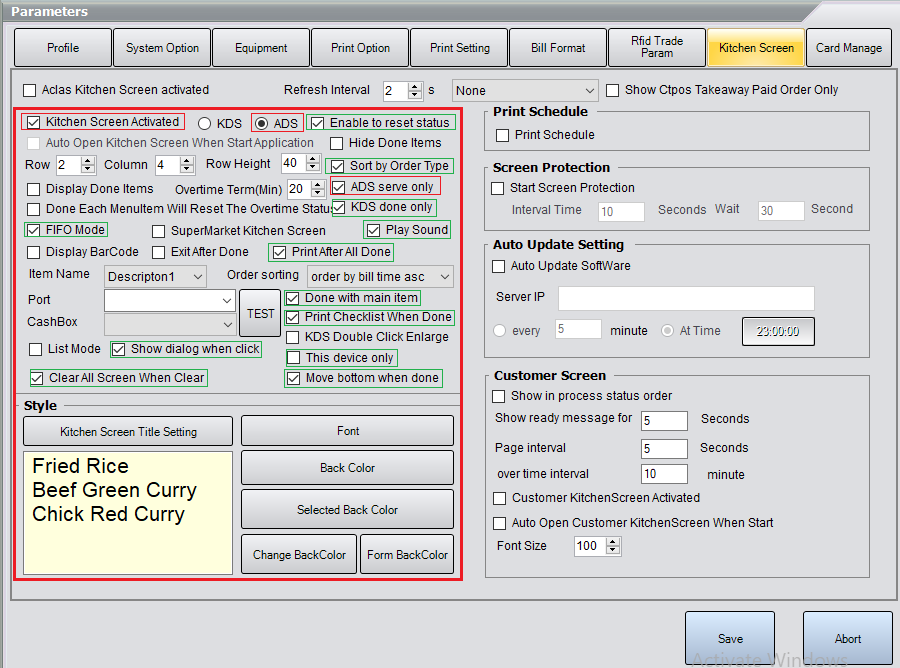

In "ADS", We should enable the following.
----------------------------
"Kitchen Screen Activated" and select "KDS"(KitchenDisplayScreen) and enable "KDS done only" to activate "KDS"
When we enable "KDS done only", the "Item" status can be only "Cooking, Ready".
-----------
"Kitchen Screen Activated" and select "ADS"(AttentionDisplayScreen) and enable "ADS Serve only" to activate "ADS"
When we enable "ADS Serve only", the "Item" status can be only "Ready, Delivered".
----------------------------------------------
----------------------------
disable "List Mode" and disable "This device only"
-----------
------------------------------------------------------------------------------------------------------------------------------------
5.
Print Setting
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
6.
Profile
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
7.
Print Option
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Scenario01
Send Void Item to Kitchen
----------------------------
Disable
Void Item Not Send to Kitchen
Enable
Print JobList When Void AllItem
----------------------------
----------------------------------------------
Scenario02
Not Send Void Item to Kitchen
----------------------------
Enable
Void Item Not Send to Kitchen
Disable
Print JobList When Void AllItem
----------------------------
------------------------------------------------------------------------------------------------------------------------------------
8.
Bill Format
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
2.3. "KdsSetting-PosMachine"
-------------------------------------------------------------------------------------------------------------------------------------------------
"KdsSetting-PosMachine"
-------------------------------------------------------------------------------------------------------------------------------------------------
1.
ServerConfig.exe
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Set up the "IPAdress" for your "Database" on "ServerConfig.exe"
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
2.
Test Printer
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
4.
KitchenScreen
----------------------------------------------
In "PosMachine", We should enable the following.
----------------------------
"Kitchen Screen Activated"
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
5.
Print Setting
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
6.
Profile
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
7.
Print Option
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Scenario01
Send Void Item to Kitchen
----------------------------
Disable
Void Item Not Send to Kitchen
Enable
Print JobList When Void AllItem
----------------------------
----------------------------------------------
Scenario02
Not Send Void Item to Kitchen
----------------------------
Enable
Void Item Not Send to Kitchen
Disable
Print JobList When Void AllItem
----------------------------
------------------------------------------------------------------------------------------------------------------------------------
8.
Bill Format
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
2.4. "KdsSetting-Server"
-------------------------------------------------------------------------------------------------------------------------------------------------
"KdsSetting-Server"
-------------------------------------------------------------------------------------------------------------------------------------------------
2.
Test Printer
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
4.
KitchenScreen
----------------------------------------------
In "Server", We should enable the following.
----------------------------
"Kitchen Screen Activated"
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
5.
Print Setting
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
6.
Profile
----------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------
7.
Print Option
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
Scenario01
Send Void Item to Kitchen
----------------------------
Disable
Void Item Not Send to Kitchen
Enable
Print JobList When Void AllItem
----------------------------
----------------------------------------------
Scenario02
Not Send Void Item to Kitchen
----------------------------
Enable
Void Item Not Send to Kitchen
Disable
Print JobList When Void AllItem
----------------------------
------------------------------------------------------------------------------------------------------------------------------------
8.
Bill Format
----------------------------------------------
You don't need to do this,
our engineer will do this for you.
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
9.
Item - KDS, Printer
-------------------------------------------------------------------------------------------------------------------------
9.1.
Item - KDS, Printer
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------
9.2.

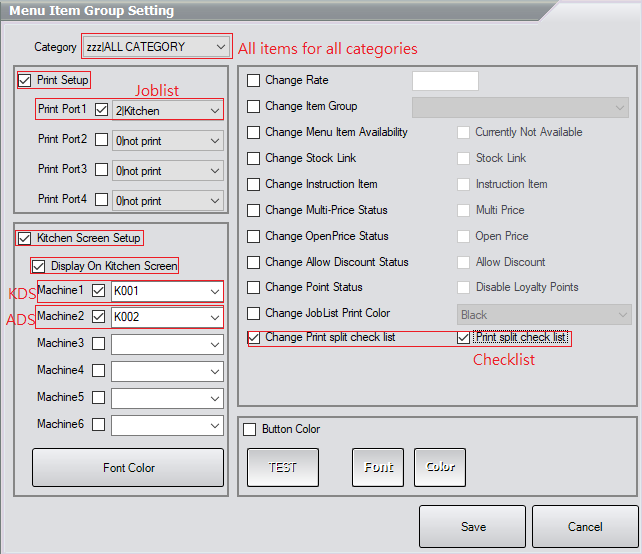

Group Setup - Item - KDS, Printer
----------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
