================================ 1. Device for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter 2. KdsSetting - PosMachineOrServer, Kds, Ads 2.1. "KdsSetting-Kds"(KitchenDisplayScreen) 2.2. "KdsSetting-Ads"(AttentionDisplayScreen) 2.3. "KdsSetting-PosMachine" ================================



================================






1. Device for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter


-------------------------------------------------------------------------------------------------------------------------------------------------

CDevice for QuickService, TableSale : Server, Armpos, ADS, KDS, Reception Printer, KitchenWindowPrinter, KitchenPrinter

-------------------------------------------------------------------------------------------------------------------------------------------------

1.

OrderType : TableSales & QuickService

-------------------------------------------------------------------------------------------------------------------------

1.1.

TableSales

-----------------------------------------------------------------------------------------------------------

"TableSales" Devices

--------------------------------------------

Device in "Kitchen" is for "JobList" :

KitchenPrinter

"KDS"(KitchenDisplayScreen)

----------------------------

Device in "KitchenWindow" is for "CheckList" :

KitchenWindowPrinter

"ADS"(AttentionDisplayScreen) beside the "KitchenWindow"

----------------------------

Device in "Reception" is for "Receipt" or "Invoice".

ReceptionPrinter

Pos Machine

----------------------------

Device in somewhere

Server

"Server" contains the "Database"

-------------------------------------------------------------------------------------------------------------------------

1.2.

QuickService

-----------------------------------------------------------------------------------------------------------

1.2.1.

"QuickService" Devices

--------------------------------------------

Device in "Kitchen" is for "JobList" :

KitchenPrinter

"KDS"(KitchenDisplayScreen)

----------------------------

Device in "KitchenWindow" is for "CheckList" :

KitchenWindowPrinter

"ADS"(AttentionDisplayScreen) beside the "KitchenWindow"

----------------------------

Device in "Reception" is for "Receipt" or "Invoice" or "ServiceNumber"

ReceptionPrinter

Pos Machine

----------------------------

Device in somewhere

Server

"Server" contains the "Database"

-------------------------------------------------------------------------------------------------------------------------------------------------





2. KdsSetting - PosMachineOrServer, Kds, Ads


2.1. "KdsSetting-Kds"(KitchenDisplayScreen)


-------------------------------------------------------------------------------------------------------------------------------------------------

"KdsSetting-Kds"(KitchenDisplayScreen)

-------------------------------------------------------------------------------------------------------------------------------------------------

1.

ServerConfig.exe

----------------------------------------------

Set up the "IPAdress" for your "Database" on "ServerConfig.exe"

----------------------------------------------

Graphical user interface, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

2.

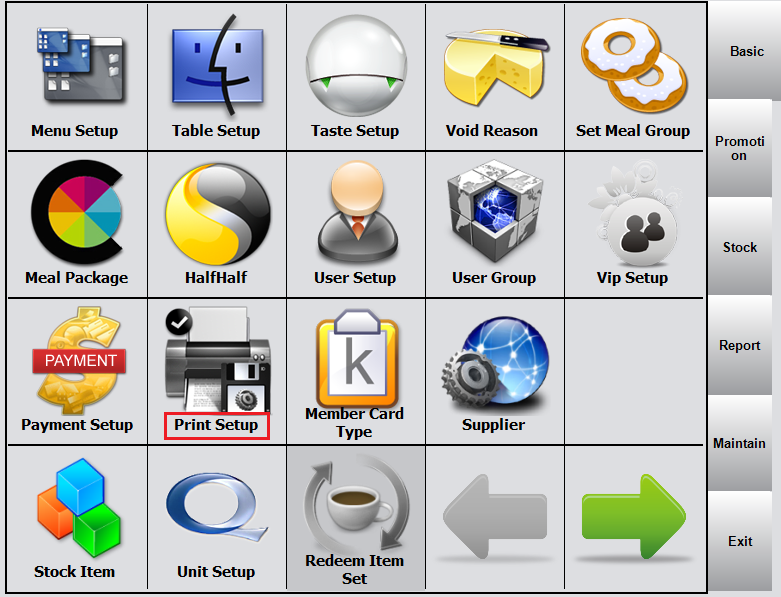

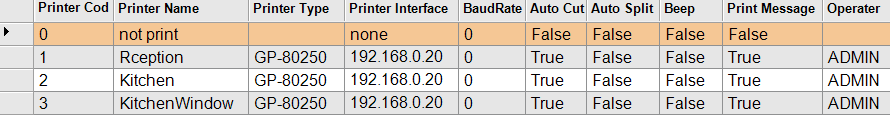

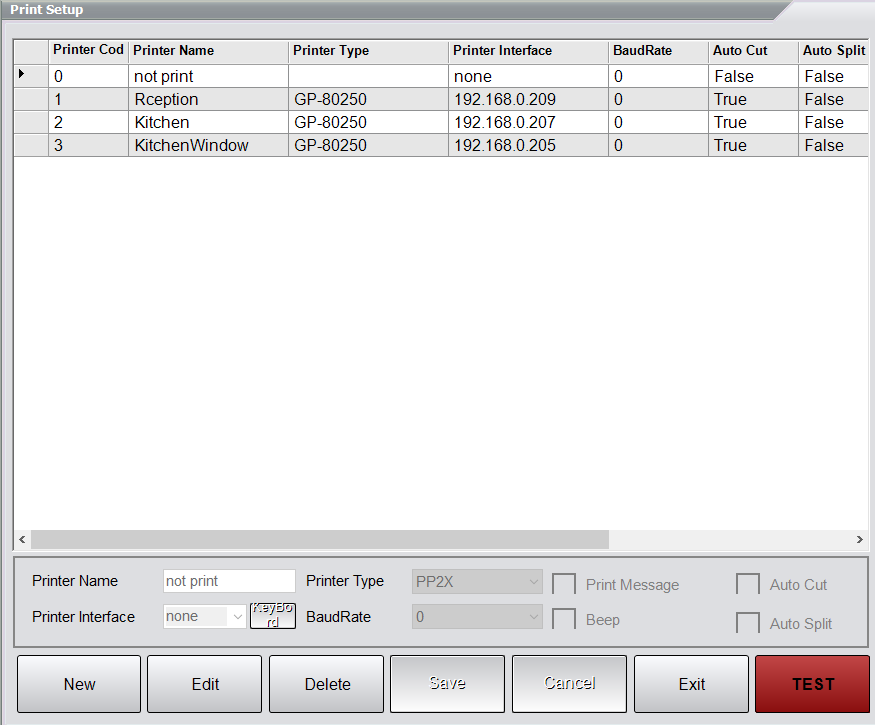

Printer

----------------------------------------------

Logo, company name Description automatically generated

Table Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

3.

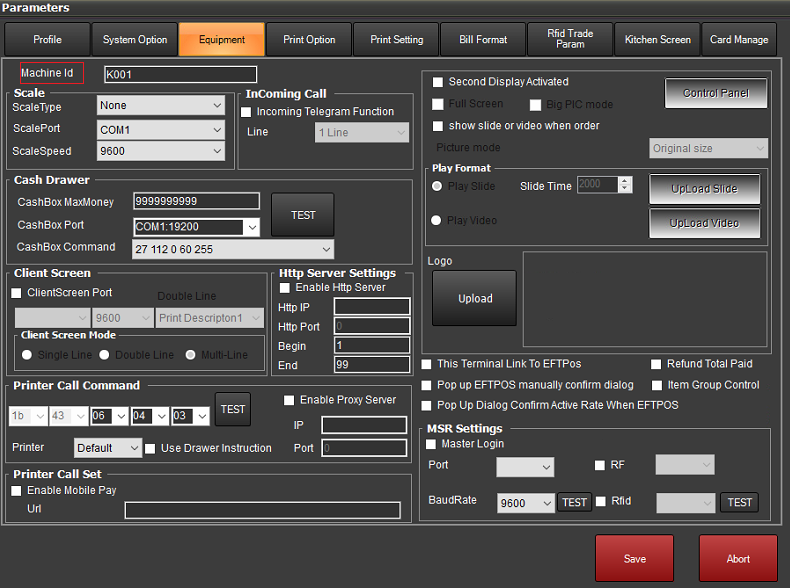

Equipment --> Machine Id

----------------------------------------------

In my case, my "MachineId" is "K001".

----------------------------------------------

Graphical user interface Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

4.

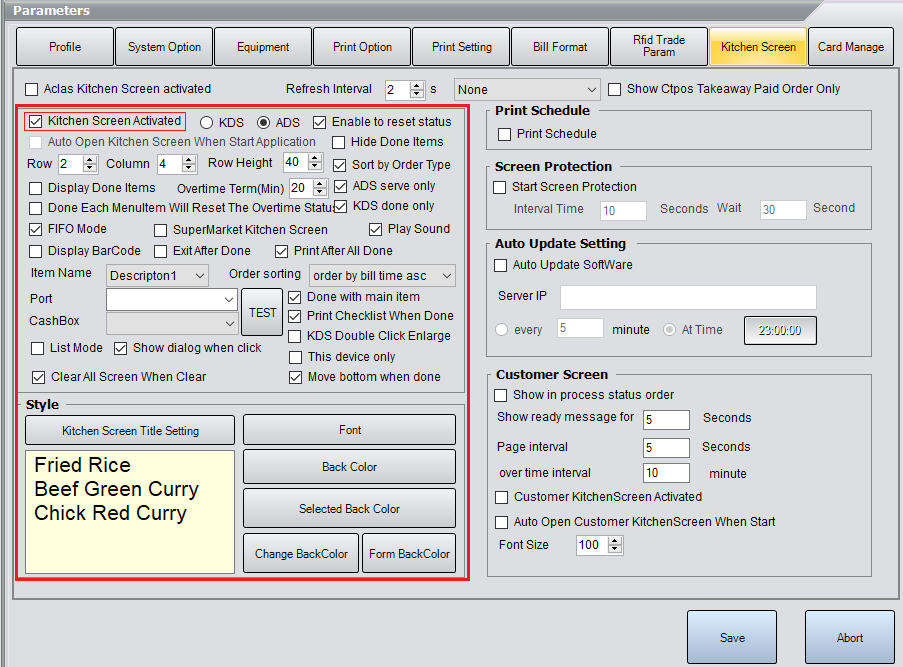

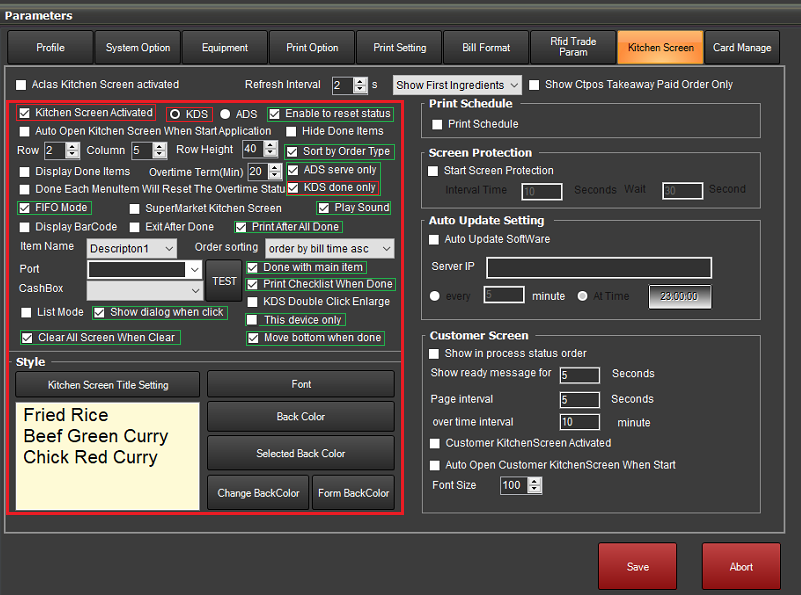

KitchenScreen

----------------------------------------------

In "KDS", We should enable the following.

----------------------------

"Kitchen Screen Activated" and select "KDS"(KitchenDisplayScreen) and enable "KDS done only" to activate "KDS"

When we enable "KDS done only", the "Item" status can be only "Cooking, Ready".

-----------

"Kitchen Screen Activated" and select "ADS"(AttentionDisplayScreen) and enable "ADS Serve only" to activate "ADS"

When we enable "ADS Serve only", the "Item" status can be only "Ready, Delivered".

----------------------------

"FIFO Mode" means "First In, First Out".

----------------------------

The "Status" can be "Cooking, Ready, Delivered" by sequence,

and it is not reversible.(Status不可逆轉)

"Enable to reset status" means the status can be reverse from "Delivered" back to "Cooking"

just in case if human mistakes. (E.g. Press wrong button)

----------------------------

"OrderType" can be "TableSale" and "QuickService".

"Sort by Order Type" means the "order" on "KDS" will be sorted by "OrderType"

----------------------------

"Play Sound"

----------------------------

"Done with main item"

When you click the "MainItem" on "KDS",

the status of "MainItem" will become done.

When the "MainItem" is done, all its "InstructionItem" will also be done.

----------------------------

"Print Checklist When Done"

When the "MainItem" or "InstructionItem" is done,

print the "CheckList" for that individual "Item"

----------------------------

"Print After All Done"

When you click "Done" button,

the status for all "Items" of the "Order" will become done.

It will also print the "CheckList" for all "Items" of the "Order".

----------------------------

"Move bottom when done"

When you click the "MainItem" on "KDS",

the status of "MainItem" will become done.

That "MainItem" will be moved to then end of the "Order" on "KDS"

----------------------------

"Clear All Screen When Clear"

I assume that you have "ADS" and "KDS,

After all "Items" has been delivered,

then the "waitress" or "waiter" should click "clear" on "ADS"(AttentionDisplayScreen).

It would "clear" all "Items" for that "order" on both "ADS"(AttentionDisplayScreen) and "KDS"(KitchenDisplayScreen).

----------------------------

"List Mode" and "This device only"

I assume that your have a big "Kitchen" that contains many "KitchenAreas"

E.g.

"KitchenAreas01" is for "Drink" and it has "KDS01"

"KitchenAreas02" is for "Food" and it has "KDS02"

-----------

If you enable "List Mode" and disable "This device only",

it allows your "KDS" displays "JobList" in "List Mode" for both "KDS01" and "KDS02"

Disable "This device only" will display all "KDS" and "ADS" in the same "LAN"(LocalAreaNetwork)

-----------

If you enable "List Mode" and enable "This device only",

it allows your "KDS" displays "JobList" in "List Mode" only for "KDS01" or "KDS02"

I don't recommend this setting.

-----------

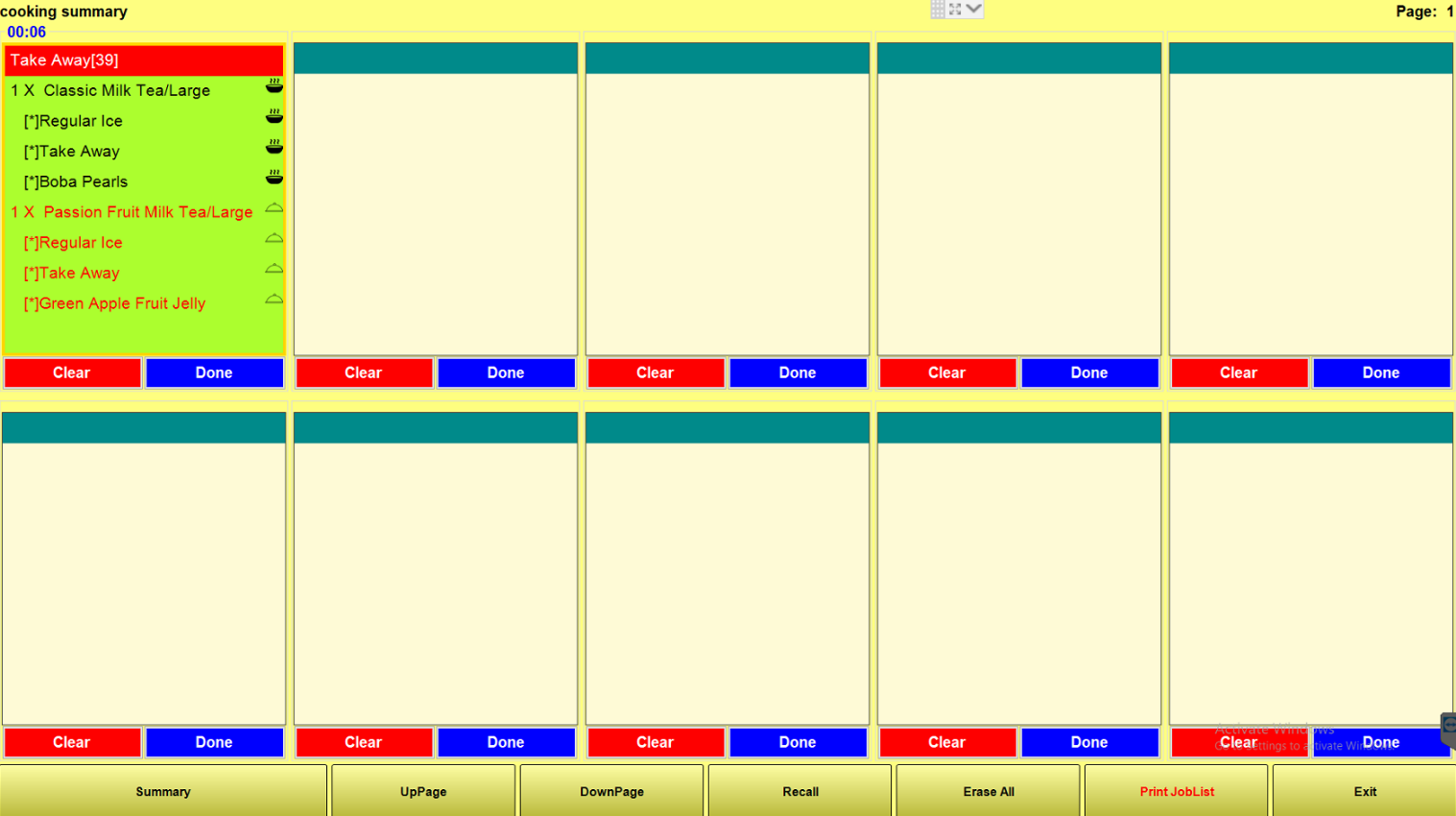

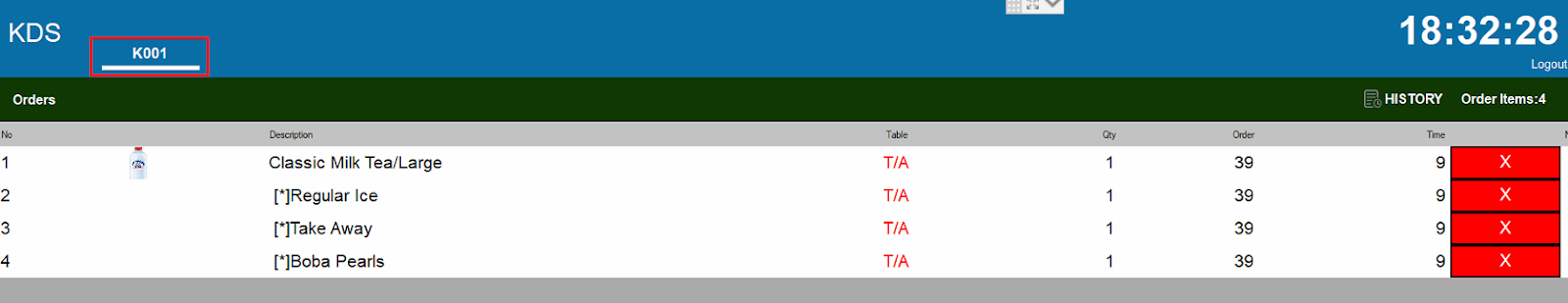

If you disable "List Mode",

it allows your "KDS" displays "JobList" in "Normal Mode" only for "KDS01" or "KDS02"

"Normal Mode" can only display for one device.

----------------------------------------------

A screenshot of a computer Description automatically generated with medium confidence

----------------------------

disable "List Mode".

-----------

A screenshot of a computer Description automatically generated with medium confidence

----------------------------

enable "List Mode" and enable "This device only"

I don't recommend this setting.

-----------

A picture containing graphical user interface Description automatically generated

----------------------------

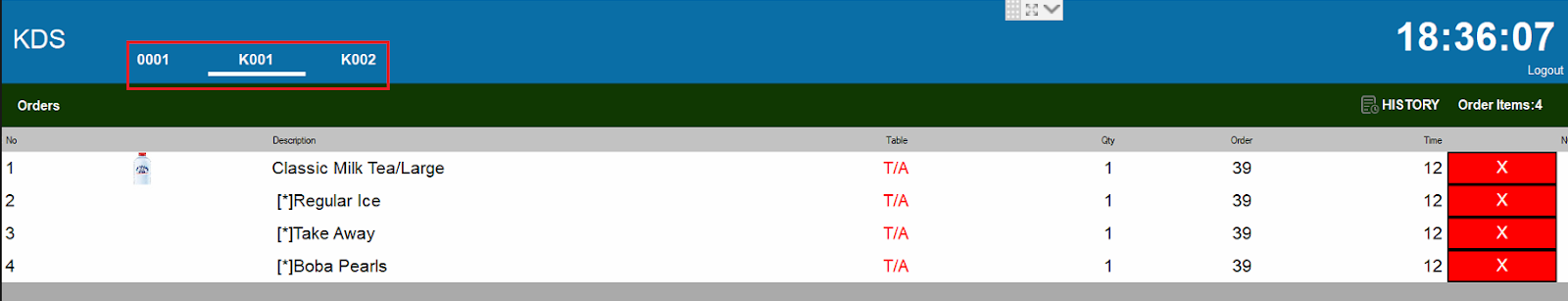

enable "List Mode" and disable "This device only"

Disable "This device only" will display all "KDS" and "ADS" in the same "LAN"(LocalAreaNetwork)

-----------

A picture containing text Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

5.

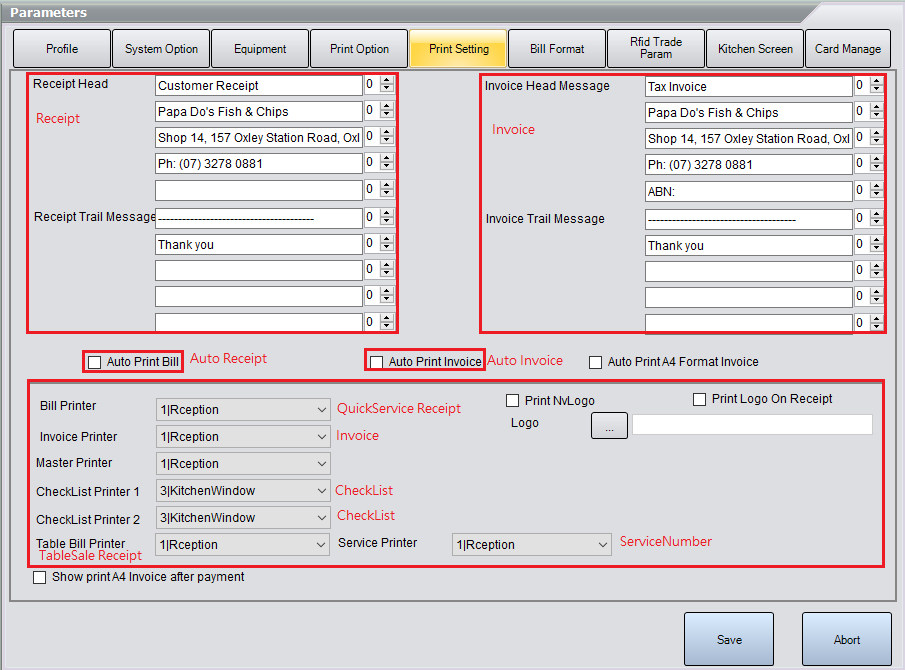

Print Setting

----------------------------------------------

Graphical user interface Description automatically generated

Text Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

6.

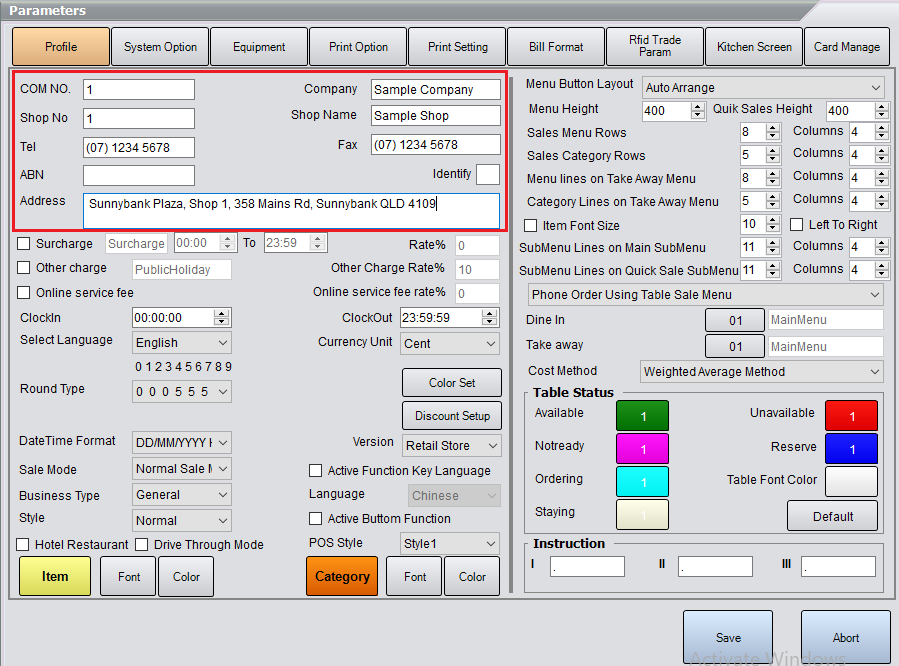

Profile

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

7.

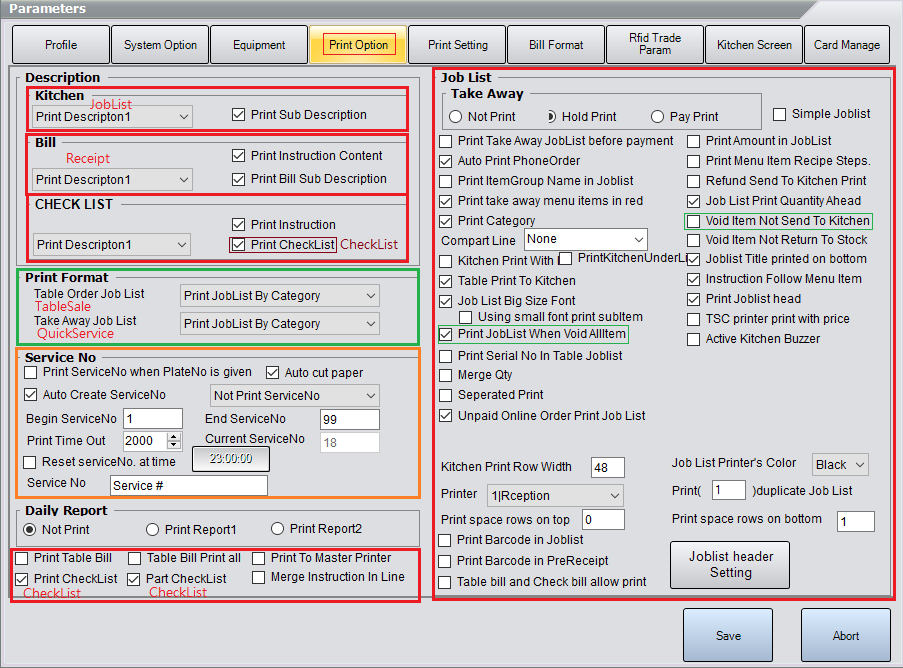

Print Option

----------------------------------------------

Scenario01

Send Void Item to Kitchen

----------------------------

Disable

Void Item Not Send to Kitchen

Enable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

----------------------------------------------

Scenario02

Not Send Void Item to Kitchen

----------------------------

Enable

Void Item Not Send to Kitchen

Disable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

8.

Bill Format

----------------------------------------------

Graphical user interface Description automatically generated

-------------------------------------------------------------------------------------------------------------------------------------------------




2.2. "KdsSetting-Ads"(AttentionDisplayScreen)



-------------------------------------------------------------------------------------------------------------------------------------------------

"KdsSetting-Ads"(AttentionDisplayScreen)

-------------------------------------------------------------------------------------------------------------------------------------------------

1.

ServerConfig.exe

----------------------------------------------

Set up the "IPAdress" for your "Database" on "ServerConfig.exe"

----------------------------------------------

Graphical user interface, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

2.

Printer

----------------------------------------------

Logo, company name Description automatically generated

Graphical user interface, table Description automatically generated

Table Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

3.

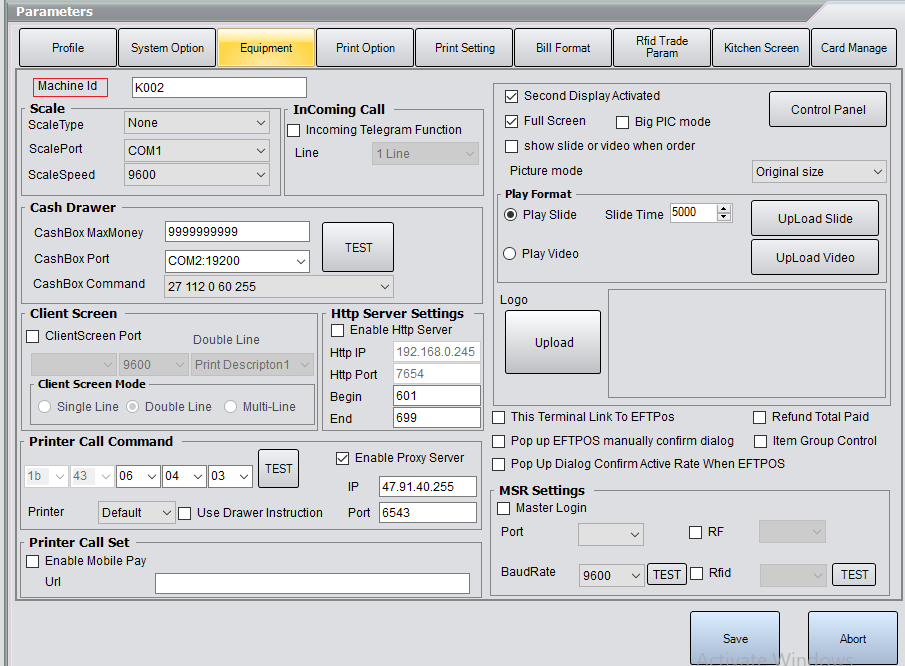

Equipment --> Machine Id

----------------------------------------------

In my case, my "MachineId" is "K002".

----------------------------------------------

Graphical user interface, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

4.

KitchenScreen

----------------------------------------------

In "ADS", We should enable the following.

----------------------------

"Kitchen Screen Activated" and select "KDS"(KitchenDisplayScreen) and enable "KDS done only" to activate "KDS"

When we enable "KDS done only", the "Item" status can be only "Cooking, Ready".

-----------

"Kitchen Screen Activated" and select "ADS"(AttentionDisplayScreen) and enable "ADS Serve only" to activate "ADS"

When we enable "ADS Serve only", the "Item" status can be only "Ready, Delivered".

----------------------------------------------

Graphical user interface, application Description automatically generated

----------------------------

disable "List Mode" and disable "This device only"

-----------

Calendar Description automatically generated with low confidence

------------------------------------------------------------------------------------------------------------------------------------

5.

Print Setting

----------------------------------------------

Graphical user interface Description automatically generated

Text Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

6.

Profile

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

7.

Print Option

----------------------------------------------

Scenario01

Send Void Item to Kitchen

----------------------------

Disable

Void Item Not Send to Kitchen

Enable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

----------------------------------------------

Scenario02

Not Send Void Item to Kitchen

----------------------------

Enable

Void Item Not Send to Kitchen

Disable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

8.

Bill Format

----------------------------------------------

Graphical user interface Description automatically generated

-------------------------------------------------------------------------------------------------------------------------------------------------






2.3. "KdsSetting-PosMachine"


-------------------------------------------------------------------------------------------------------------------------------------------------

"KdsSetting-PosMachine"

-------------------------------------------------------------------------------------------------------------------------------------------------

1.

ServerConfig.exe

----------------------------------------------

Set up the "IPAdress" for your "Database" on "ServerConfig.exe"

----------------------------------------------

Graphical user interface, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

2.

Printer

----------------------------------------------

Logo, company name Description automatically generated

Graphical user interface, table Description automatically generated

Table Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

4.

KitchenScreen

----------------------------------------------

In "PosMachine", We should enable the following.

----------------------------

"Kitchen Screen Activated"

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

5.

Print Setting

----------------------------------------------

Text Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

6.

Profile

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

7.

Print Option

----------------------------------------------

Scenario01

Send Void Item to Kitchen

----------------------------

Disable

Void Item Not Send to Kitchen

Enable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

----------------------------------------------

Scenario02

Not Send Void Item to Kitchen

----------------------------

Enable

Void Item Not Send to Kitchen

Disable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

8.

Bill Format

----------------------------------------------

Graphical user interface Description automatically generated

-------------------------------------------------------------------------------------------------------------------------------------------------



2.4. "KdsSetting-Server"


-------------------------------------------------------------------------------------------------------------------------------------------------

"KdsSetting-Server"

-------------------------------------------------------------------------------------------------------------------------------------------------

2.

Printer

----------------------------------------------

Logo, company name Description automatically generated

Graphical user interface, table Description automatically generated

Table Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

4.

KitchenScreen

----------------------------------------------

In "Server", We should enable the following.

----------------------------

"Kitchen Screen Activated"

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

5.

Print Setting

----------------------------------------------

Graphical user interface Description automatically generated

Text Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

6.

Profile

----------------------------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

7.

Print Option

----------------------------------------------

Scenario01

Send Void Item to Kitchen

----------------------------

Disable

Void Item Not Send to Kitchen

Enable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

----------------------------------------------

Scenario02

Not Send Void Item to Kitchen

----------------------------

Enable

Void Item Not Send to Kitchen

Disable

Print JobList When Void AllItem

----------------------------

Graphical user interface, text, application Description automatically generated

------------------------------------------------------------------------------------------------------------------------------------

8.

Bill Format

----------------------------------------------

Graphical user interface Description automatically generated

-------------------------------------------------------------------------------------------------------------------------------------------------

9.

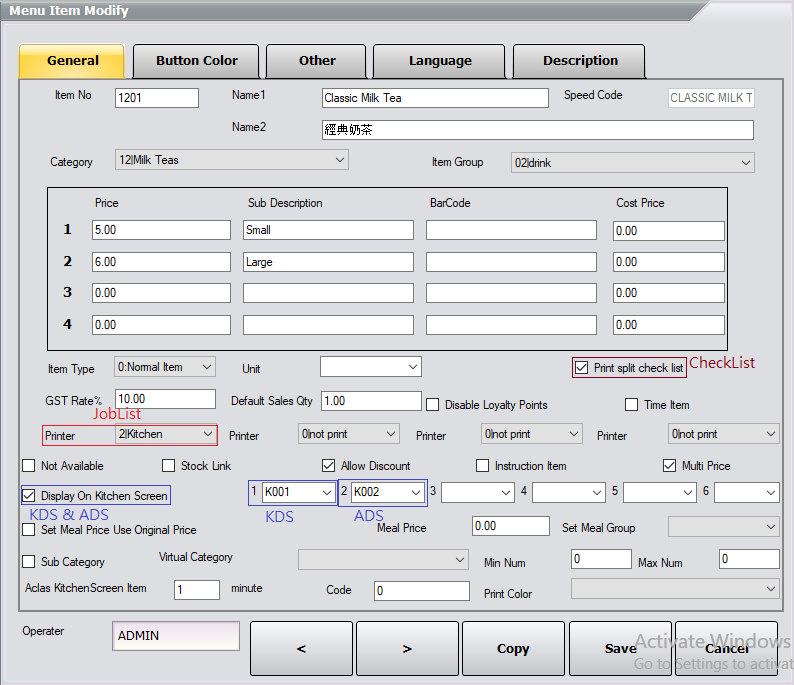

Item - KDS, Printer

-------------------------------------------------------------------------------------------------------------------------

9.1.

Item - KDS, Printer

----------------------------------------------

Graphical user interface Description automatically generated

-------------------------------------------------------------------------------------------------------------------------

9.2.

Group Setup - Item - KDS, Printer

----------------------------------------------

A picture containing table Description automatically generated

Graphical user interface, application Description automatically generated

-------------------------------------------------------------------------------------------------------------------------------------------------
